OM1

Explore our configurator to better understand what’s possible and costs.

The pricing shown on the online configurator is for the supply of materials, licence to assemble & recommended assembly fee.

A provisional 'assembly schedule' and 'labour allowance' guide can be reviewed here.

This is an introductory call to answer your questions about OM1, explain our process and assess how Dimensions X could fit your needs.

Time: 20 minutes. Cost: free

Book call

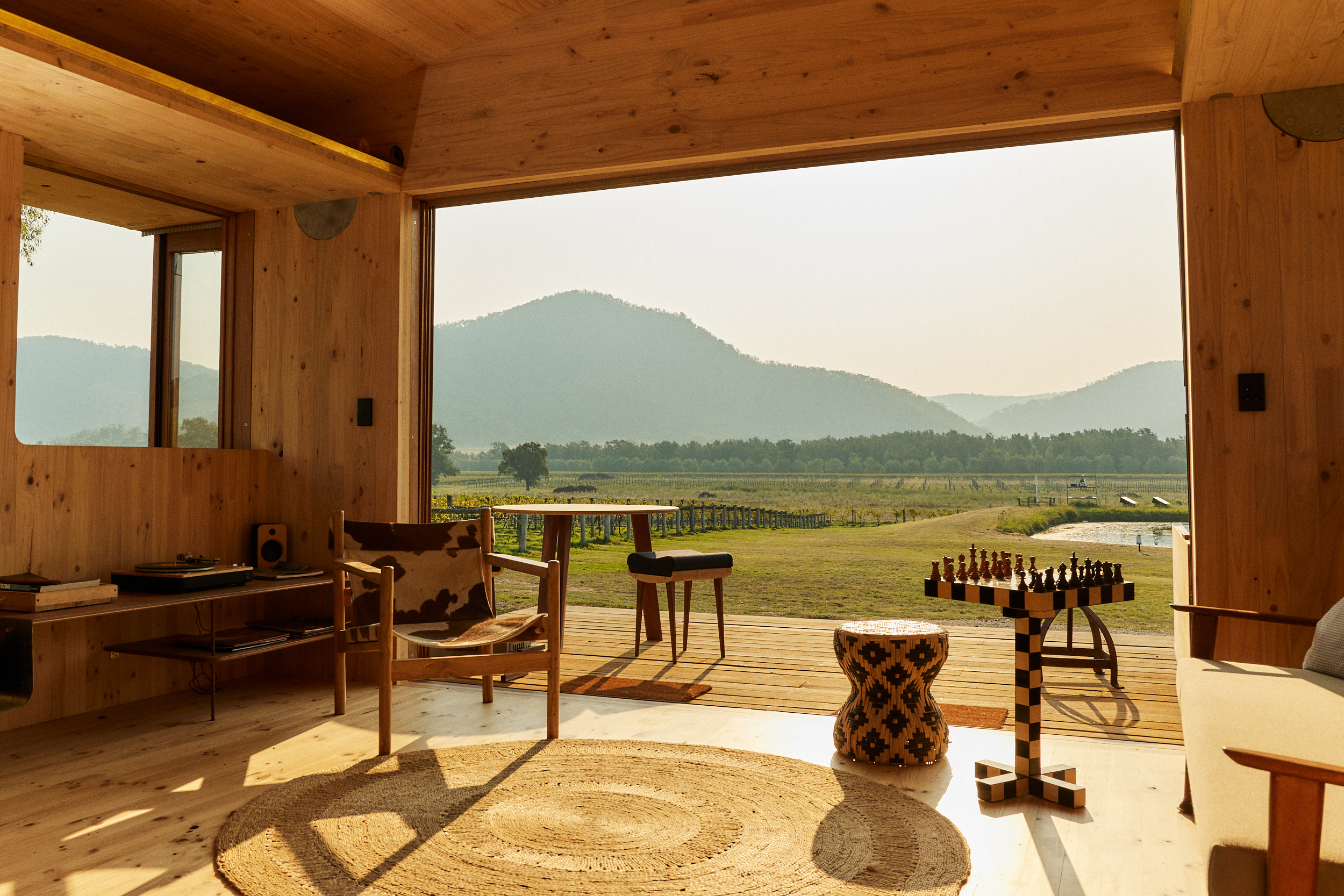

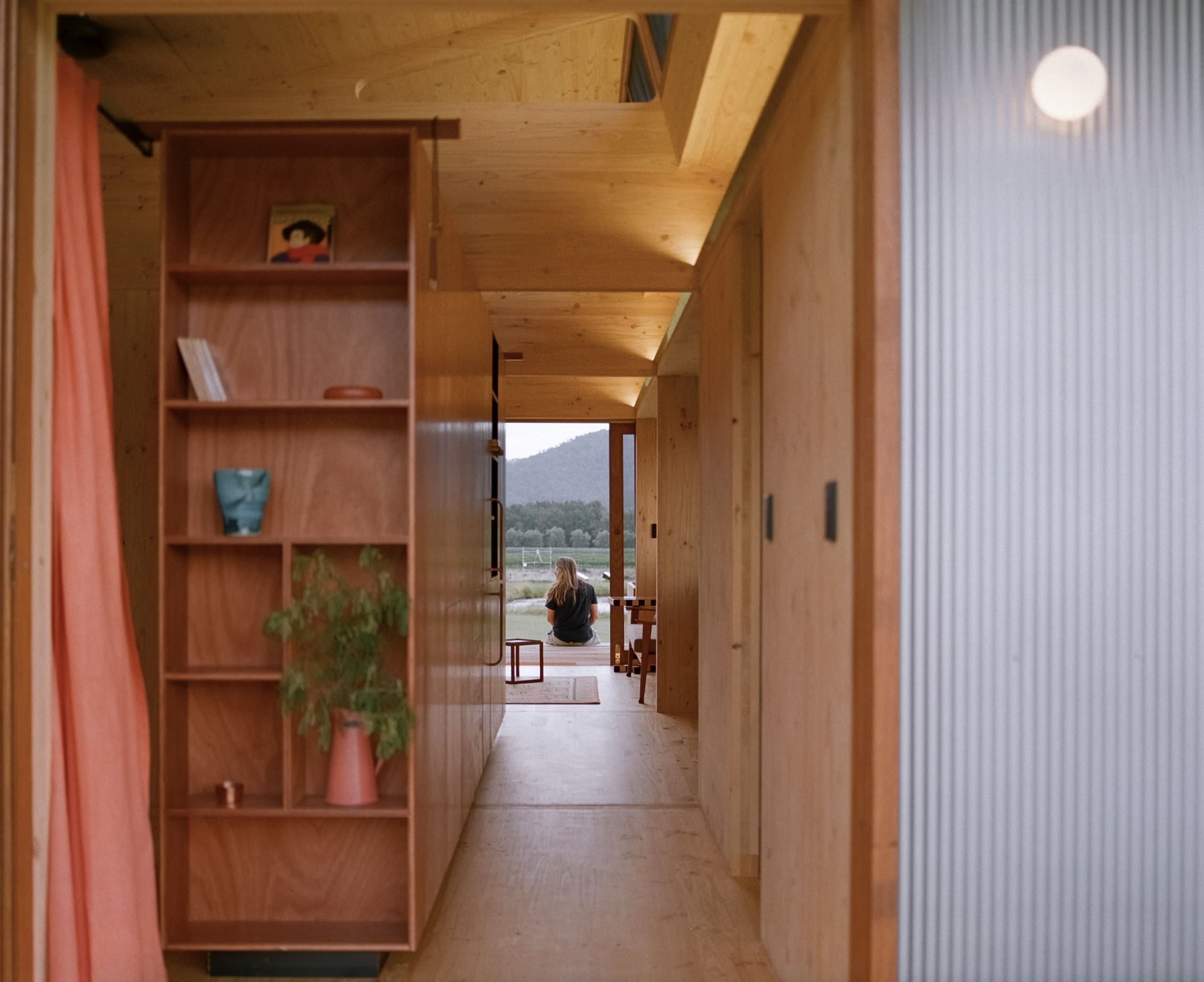

Currently, Krinklewood is the home of OM1 and MS1 prototypes. Appointments can be made to visit.

3D tour OM1-3

Submit & order your OM1 design.

Cost $2,500+gst. A site visit is highly recommended. Additional charge $150+gst/hr + travel.

3.1  Site Visit or Phone Call (1.5hr site visit required)

• Advise on location & orientation (site visit required)

• Locate reference set-out points for the house (site visit required)

• Review brief proposed by the client and discuss on-site or over the phone - 0.5hr meeting.

3.2 Preliminary brief for approval (allow 1.5 weeks)

• DimX will prepare and send a revised 3D configurator / Schematic design brief for clients to review.

• A 30-minute meeting at Peter Stutchbury Architecture office or Zoom call is scheduled to discuss the proposed brief.

• Approval of brief with comments or agreed changes if required.

3.3 Survey & Geotech Report of the site obtained by the client;

Survey Requirements:

• Survey with contours, boundaries and set out pegs located on-site by DimX Team (preferably in .dwg format) Additionally, include the following only if required or applicable to your site/subject area:

• Existing Trees within and surrounding area for the proposed house location (only if tree removal is required - eg. Dense bushland with no existing cleared areas) *

• Existing services/infrastructure if applicable (eg. existing house, electrical pole, sewer, water tank, etc)

• Predominant features if applicable (eg. Big boulder, escarpment, water body, etc)

Geotech Report: (not critical for next step - mandatory for Step 5. Contract Signed)

• Site classification

• A detailed description of soil classification such as fill, sand, clay, organic material, etc., as well as the depth of soil layers, depth of refusal (if any), and bedrock (including the type of rock and hardness factor).

• Density or consistency description (firm, stiff, dense, etc.)

• Allowable Bearing capacity

• Moisture description (wet, moist, dry etc )

• 2 x boreholes  ( could be hand augured) and a drawing of the borehole location in relation to the proposed structure

3.4 Documentation (allow 1.5 weeks)

• We will prepare the documentation upon receiving the survey .dwg file. This includes a site plan, floor plan, 4 elevations and 1 section.

A return design is sent for approval & final sign-off.

Any additional changes required at this stage will be assessed at an hourly rate $150/hr.

Once the design is approved, a contract is signed with Dimensions X to secure the license and materials required to assemble your OM1.

Flexible options to assemble your OM1 with a licensed builder or as an owner/builder.

Dimensions X will send materials to your site, along with a recommended assembly schedule, manual and a recommended 'labour allowance'.

A private certifier is engaged to provide documentation required to gain council approval via CDC (comply and development) or DA.

Dimensions X offer a service to prepare documentation required for council approvals.

Time - minimum 3 weeks.

Cost - $3,500.

Additional fees will be charged for external reports requested by the planner/certifier (i.e. SoEE, Bushfire, BASIX).

This process can also be managed by you.

A surveyor is required to locate the footing set out for a contractor to install footings. Allow two days for both jobs to be completed. This must be done prior to ordering Cross Laminated Timber (CLT) as columns are cut to size and determined by the slope of your site.

Allow 12 weeks for the production of parts (CLT, doors, windows).

Finished construction - allow approximately 3-8 weeks depending on scope, site conditions and weather which are based upon Dimensions X ‘recommended builders’ allowances.
